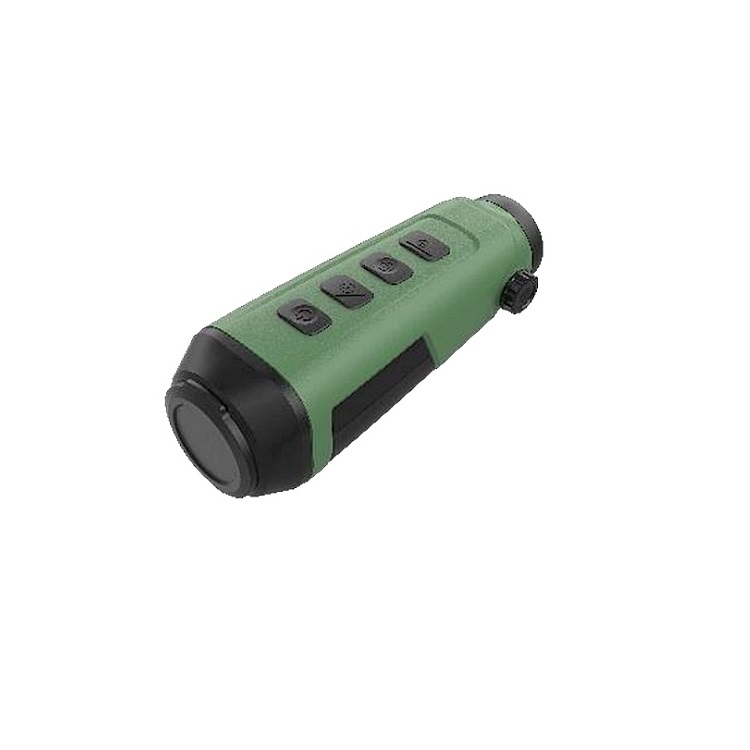

1-8X9.7 Thermal Monocular

BM-TS013A

mode

1-8X9.7

Thermal Module

1.Image Sensor

VOx Uncooled Focal Plane Arrays

2.Max.Resolution

256*192mm

3.Pixel Interval

12μm

4.Response Waveband

8μm to 14μm

5.NETD

≤ 35mk@25℃,@F/1.0

6.Lens (Focal Length)

9.7 mm

7.Field of View

18.00°*13.55°(H*V)

8.Aperture

F1.0

9.Magnification

1 to 8

10.Digital Zoom

1X, 2X, 4X, 8X

Image Display

11.Frame Frequency

25 Hz

12.Monitor

0.2inch, LCOS,720*540

13.Palettes

Black Hot, White Hot, Red Hot, Fusion

14.FFC(Flat Field Correction) Mode

Auto, Manual

Smart Function

15.Wi-Fi Hot Spot

Yes

16.Detection Range

458 m

17.Standby Mode

Yes

System

18.Built-in Memory

8 GB

19.Record Video

Yes

20.Capture Snapshot

Yes

21.Built-in Memory Capacity

220,000 pictures

22.WIFI

Yes

Power Supply

23.Battery Type

Lithium battery

24.Battery Operating Time

8 hours continuous running with Wi-Fi hot spot function off (@25°C)

6 hours continuous running with Wi-Fi hot spot function on (@25°C)

25.Battery Capacity Display

Yes

General

26.Eye Point Distance

12.5 mm

27.Work Temperature/Humidity

-20℃ to 55℃ (-4°F to 131°F)

28.Power

5 VDC/2 A, 1.5 W, Type-C Interface

29.Protection Level

IP67

Size/weight

30.Product size

159x58x57mm

31.Product weight

330g
