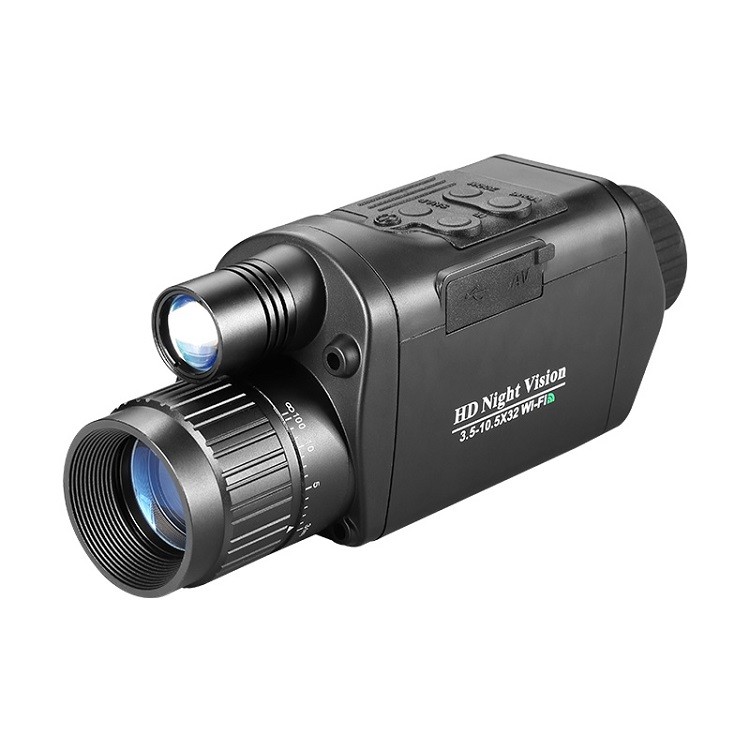

3.5-10.5X32 Night Vision

Model

3.5-10.5X32

Optical properties

Power

3.5X

Digital Zoom

2X Optical Power

Angle Of View

9°

Objective Lens Diameter(mm)

32mm

Exit Pupil Distance

15mm

F# for Objective lens

1.2

3m~∞ in daytime (colarful); Viewing in the darkness up to 300M (monochrome)

Diopter Adjustment

+100°~ -400°

Electrical Performance

Electrical Performance

Video Output

1.320x240 resolution TFT LCD,

2.OSD menu display,

3.CVBS always output with VGA resolution

Imager

1.Wide Dynamic Range

2.High-sensitivity CMOS Sensor

3.Size  1/3''

4.Resolution  640X480

IR LED

3W Infared LED  with 850nm

Micro SD Card

Support SDHC 4GB~32GB SD Card

Hardware Buttons

1.Power on/off

2.Snap

3.Mode selection

4.Zoom

5.IR switch

Operation

1.Preview

2.Record JPEG file in SD storage

3.Capture JPEG file in SD storage

4.Playback media file from SD storage

Power

1.External power supply - DC 5V/1A

2.4 pcs AA battery   4.5V-6V

3.Battery life: 3 hours working time with IR off

4.Battery low warning

System

1.    4 modes (Capture, Video, Playback)

2.    Single frame Image Capture

3.    Video image Record

4.    Playback image

5.    Delete image

6.    SD card format

7.    Power save (Off/1 min/ 3min/50 min)

8.    Language: English /Trad. Chinese /Simp. Chinese /Japanese /

9.    French /Deutsch /Korean /Italian /Portuguese /Russian / Spanish / Arabic

10. System Rest

11. Light Freq. 50/60HZ

12. Date Input

13. Version
