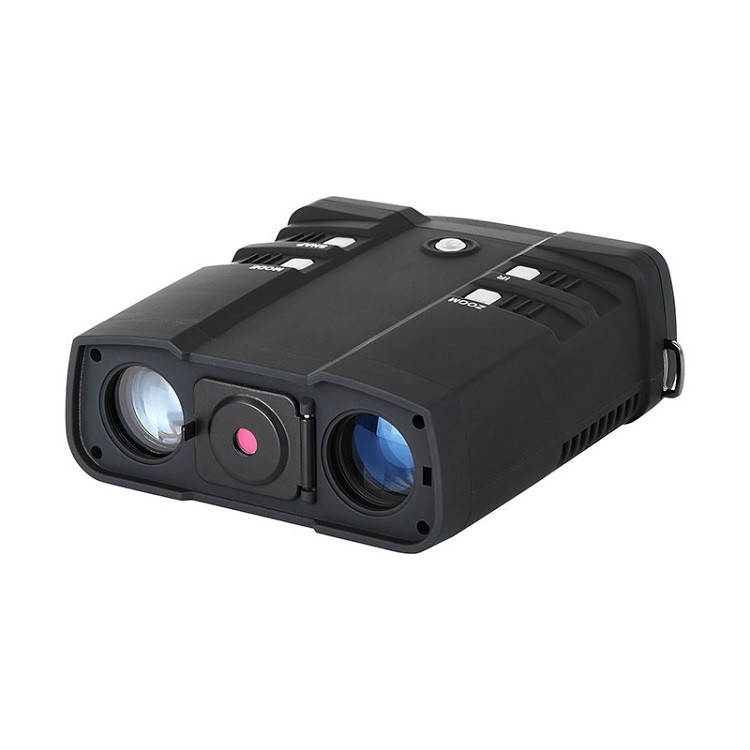

3.6-10.8X31 Night Vision

Model

3.6-10.8x31

Optical properties

Power

3.6-10.8X

Digital Zoom

3X

Angle of View

9.2°

Objective Lens

31mm

Exit Pupil Distance(mm)

30mm

F# for Objective Lens

1.3

IR ZOOM

2X

5m~∞ in daytime; Viewing in the darkness up to 300M (monochrome)

Electrical Performance

Electrical Performance

Video Output

1.     640x360 resolution TFT LCD

2.     OSD menu display

3.     CVBS always output with VGA resolution

Imager

1.     High-sensitivity CMOS Sensor

2.     Size  1/2.7''

3.     Resolution  1920X1080

IR LED

5W Infared  850nm LED

TF Card

Support SDHC 4GB~128GB TF Card

Hardware Buttons

1.     Power on/off

2.     Snap

3.     Mode selection

4.     Zoom

5.     IR switch

Operation

1.     Preview

2.     Record JPEG file in TF storage

3.     Capture AVI file in TF storage

4.     Playback media file from SD storage

Power

1.     External power supply - DC 5V/2A

2.     8 pcs AA battery   8-12 V

3.     Battery life: 10 hours working time with IR off

4.     Low battery warning

System

1.     4 modes (Capture, Video, Playback Memu)

2.     Single frame Image Capture

3.     Video image Record

4.     Playback image

5.     Delete image

6.     7 level IR switch

7.     SD card format

8.     Power save (Off/1 min/ 3min/5 min)

9.     Language: English

10.   System Rest

11.   Light Freq. 50/60HZ

12.   RTC setting

13.   Version
