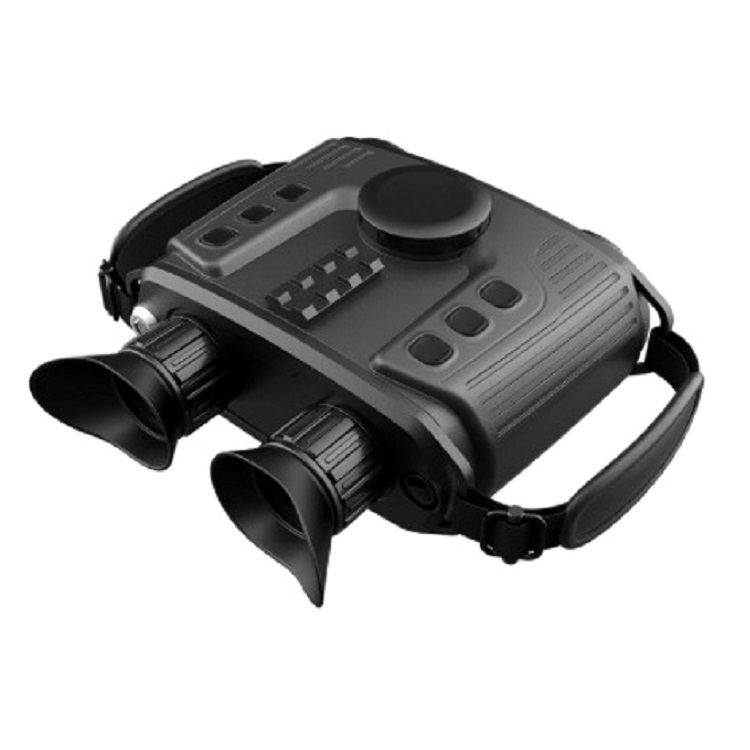

4X35 Thermal Imaging Binoculars

BM-TS006B

Model

4X35

INFRARED

1.Detector Type

640*512 @12μm,VOX

2.Spectral

8-14μm

3.NETD

≤50mk @25℃, @f/1.0

4.Focal Length

50mm

5.FOV

7.5°*5.6°

6.Focusing

Electric focusing

7.Detection Range Vehicle/Man

12500M/4722M

8.Recognition Range Vehicle/man

1180M/3125M

LOW LIGHT

9.Detector type

Ultra low illumination CMOS

10. Resolution

1920 * 1080

11. Pixel Size

4.0 μ M

12. Focal Length

35mm

13. Frame Rate

≤ 30Hz

14. Focusing Method

No focusing

DISPLAY

15.Screen Display

OLED

16. Resolution

1024 * 768

17. Display Screen Size

0.39 inches

18.Display modes.

Infrared/Low Light/Dual Light

 Fusion/Picture in Picture

19. Electronic zoom

1X/2X/4X

20.Color Palettes

Rainbow, Iron Red, Cool, White Heat, Black Heat

21. WIFI

2.4G

22. Electronic Compass

Azimuth Display

23. Positioning

GPS/BD

DISTANCE MEASUREMENT

24.Ranging Distance

10M-2500M

25.Distance measurement

accuracy

＜ 400M, ± 1M; ＞ 400M, 0.4%

 Others

26. Capacity

16G

27. Photo

Yes

28. Video recording

Yes

29. Image/Video Format

JPG/MP4

30. Interface

CVBS output: PAL video output

31. USB interface

Exporting Images and Videos

32. Power Supply

DC 12V/1A

33. Battery

18650 3200mAh * 2

34.Operating Temperature

-20 ℃ -+50 ℃

35. Storage Temperature

-30 ℃ -+70 ℃

36. Protection Level

IP54

37. Impact test

30G

38. Size

192*87*190mm

39. Weight

1650
