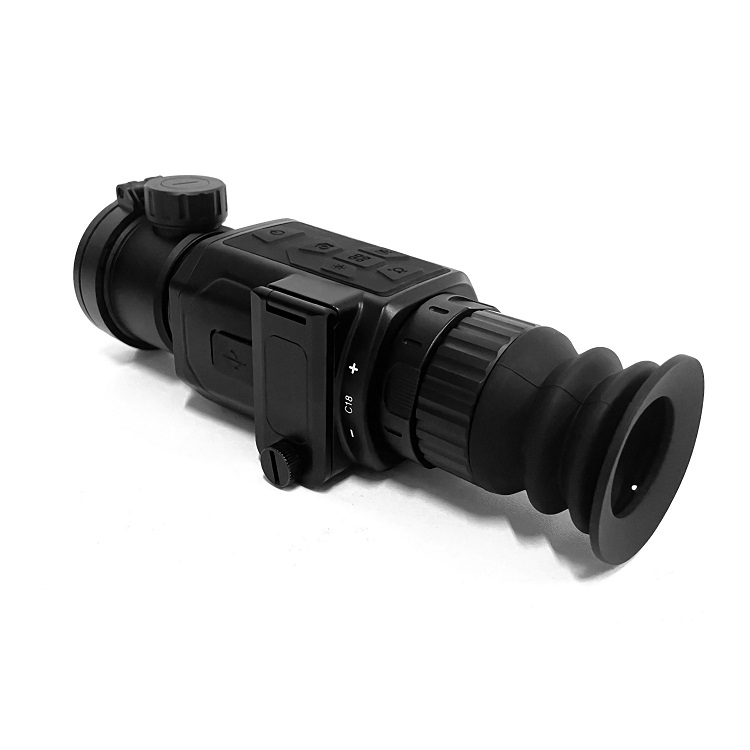

8X25 Thermal Monocular
Item No.: BM-TS007A
MOQ: 100pcs
Delivery Time: 30 days
Add OK
Product Details
|
|
BM-TS007A |
|
|
Model |
8X25 |
|
|
INFRARED |
1.Detector Type |
Vanadium Oxide Uncooled Infrared Focal Plane |
|
2. Resolution Ratio |
384*288mm |
|
|
3. Pixel Size |
12μm |
|
|
4.Focal Length |
25mm |
|
|
5.FOV |
10.5°*7.9° |
|
|
6.Word Band |
8~14μm |
|
|
7. NETD |
≤ 40mk@25℃,@F/1.0 |
|
|
8. Frame Rate |
≤50Hz |
|
|
9. Focusing Mode |
Manual |
|
|
Detection range |
10. Character |
1181m |
|
11. Vehicle |
3125m |
|
|
Recognition Distance |
12. Character |
295m |
|
13. Vehicle |
781m |
|
|
Display |
14.Display Screen Type |
OLED |
|
15. Resolution Ratio |
1440×1080 |
|
|
16. Display Size |
0.39 Inches |
|
|
17. Electronic Zoom |
1×/2×/4×/8× |
|
|
18. Diopter Regulation |
±5SD |
|
|
19. Pseudo-color |
White hot, Black hot, Fire hot, Rainbow, Iron red, Cold color |
|
|
20. Hot point track |
Supported |
|
|
21. Picture in picture |
Supported |
|
|
22. Language |
Simplified Chinese, Traditional Chinese,English, Russian and German |
|
|
Storage |
23. Capacity |
Built-in 16G EMMC(The system takes up some space and it is 13.8G actually) |
|
24. Photographing/Recording |
Supported |
|
|
25. Image/Video Format |
JPG/MP4 |
|
|
Interface |
26.USB interface |
Charging/export Image and Video |
|
Power |
27.Detachable Rechargeable Lithium Battery |
1400mAh×2(battery model 18350) |
|
General Technical Index |
28. Overall Power Consumption |
≤1.8W |
|
29. Time of Endurance |
≥5 hours |
|
|
30. Work Temperature |
-20℃ ~ +60℃ |
|
|
31. Storage Temperature |
-30℃ ~ +70℃ |
|
|
32. Impact |
≤1000G |
|
|
33.Protection Grade |
IP66 |
|
|
Size/weight |
34.Product Size |
201x66x73mm |
|
35.Product weight |
650g |
|
