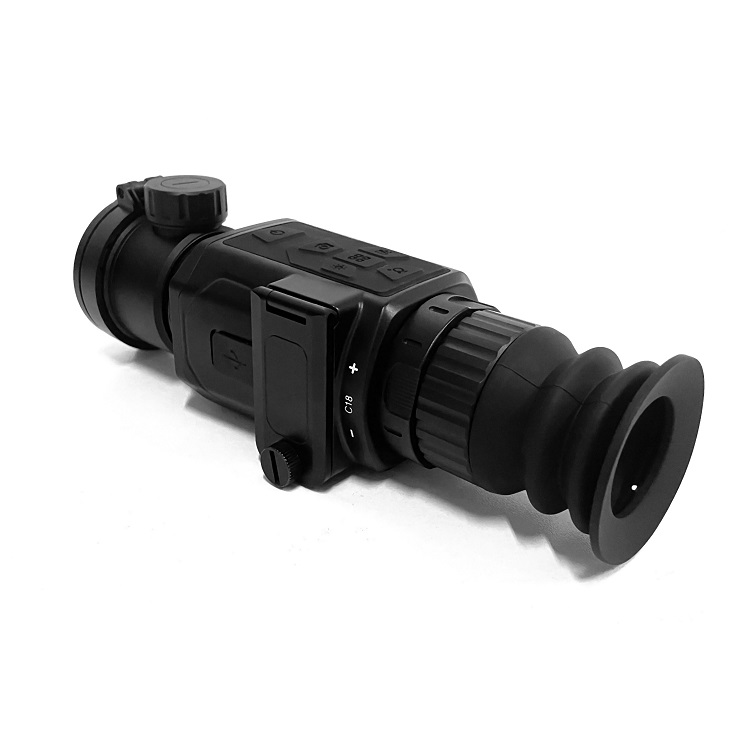

8X35 Thermal Imaging Monocular

BM-TS007B

Model

8X35

INFRARED

1.Detector Type

Vanadium Oxide Uncooled Infrared Focal Plane

2. Resolution Ratio

384*288mm

3. Pixel Size

12μm

4.Focal Length

35mm

5.FOV

7.5°*5.7°

6.Word Band

8~14μm

7. NETD

≤ 40mk@25℃,@F/1.0

8. Frame Rate

≤50Hz

9. Focusing Mode

Manual

Detection range

10. Character

1653m

11. Vehicle

4375m

Recognition Distance

12. Character

413m

13. Vehicle

1094m

Display

14.Display Screen Type

OLED

15. Resolution Ratio

1440×1080

16. Display Size

0.39 Inches

17. Electronic Zoom

1×/2×/4×/8×

18. Diopter Regulation

±5SD

19. Pseudo-color

White hot, Black hot, Fire hot, Rainbow, Iron red, Cold color

20. Hot point track

Supported

21. Picture in picture

Supported

22. Language

Simplified Chinese, Traditional Chinese,English, Russian and German

Storage

23. Capacity

Built-in 16G EMMC(The system takes up some space and it is 13.8G actually)

24. Photographing/Recording

Supported

25. Image/Video Format

JPG/MP4

Interface

26.USB interface

Charging/export Image and Video

Power

27.Detachable Rechargeable

Lithium Battery

1400mAh×2(battery model 18350)

General Technical Index

28. Overall Power Consumption

≤1.8W

29. Time of Endurance

≥5 hours

30. Work Temperature

-20℃ ~ +60℃

31. Storage Temperature

-30℃ ~ +70℃

32. Impact

≤1000G

33.Protection Grade

IP66

Size/weight

34.Product Size

201x66x73mm

35.Product weight

650g
