MicroscopyBiological MicroscopesBM-2016B-Biological Microscope

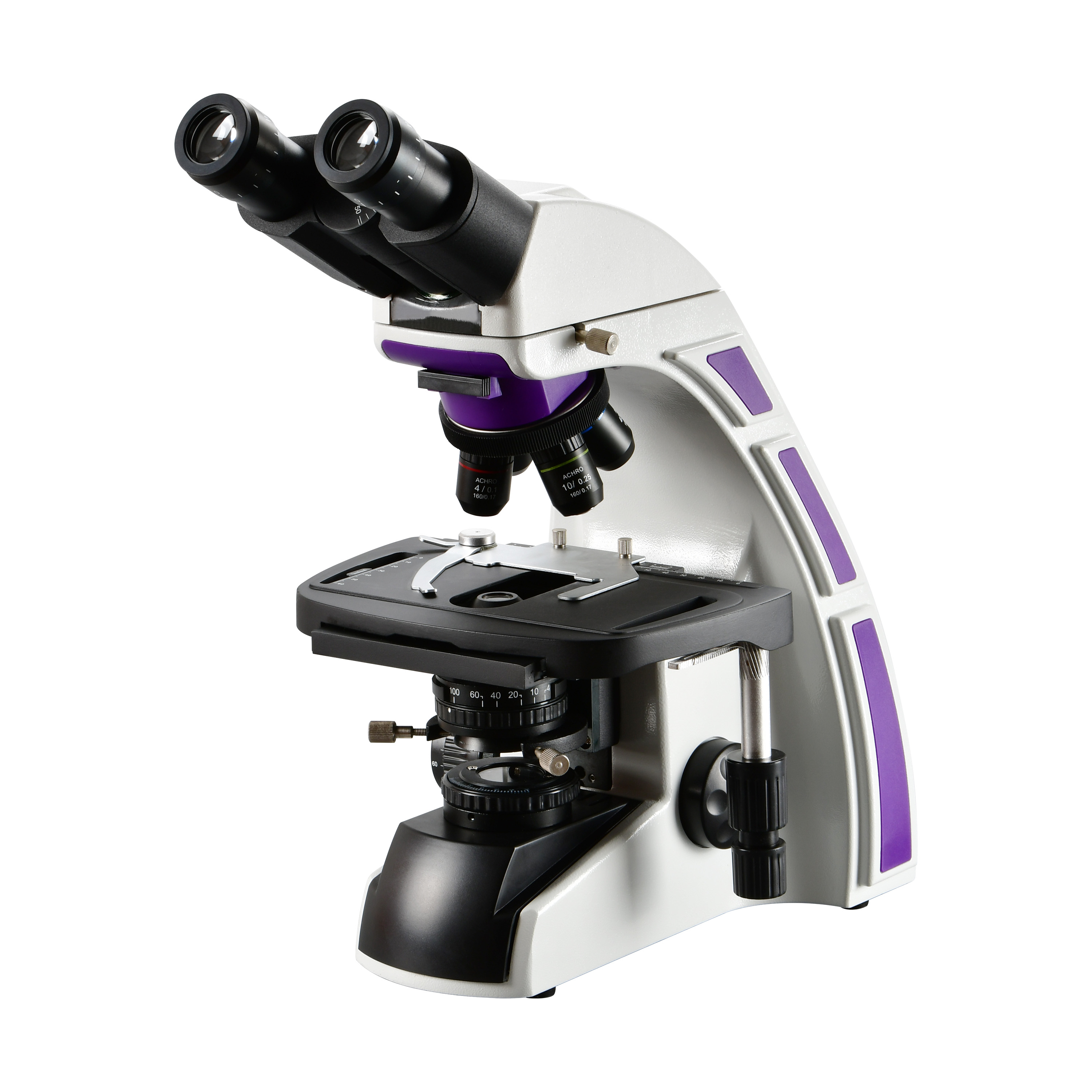

Biological Microscope

Item No.: BM-2016B
MOQ: 10PCS
Delivery Time: 20Days

Thanks
Add OK

Product Details

1.Optical System:Finity optical system

2.Eyepiece PL10X/22mm high eyepiont eyepiece, diopter adjustment ±5, tubeΦ30mm

3.Objective 45mm DIN achromatic objective:4X,10X,40X(S),100X(S,Oil)

4.Viewing Head: Articulated Free Binocular Head, 30°inclined, Interpupillary Distance 50-75mm

5.Nosepiece:Backward quintuple or quadruple objective nosepiece

6.Stage:220X148mm X-axis low hand position double mechanical stage(steel wire transmission),76X50mm,presion 0.1mm,damped double slide clamp

7.Condenser Abbe condenser set

8.Focusing System Coaxial coarse and fine focus knobs, precision 0.002mm

9.Illumination 3W LED lamp with Kohler illumination system
