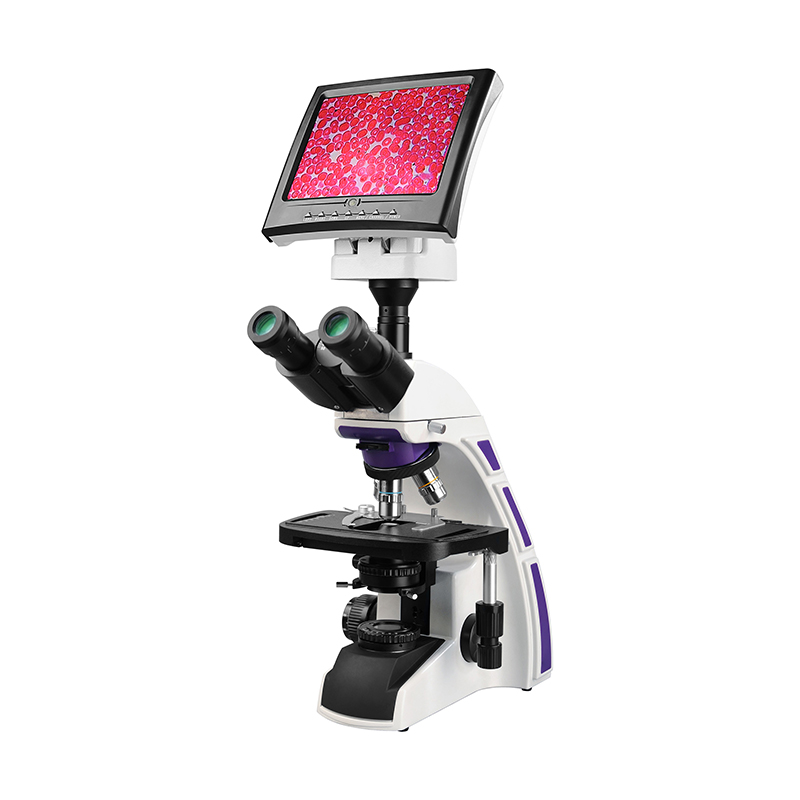

LCD Biological Microscope

1.Optical System:Finity optical system

2.Eyepiece PL10X/23mm high eyepiont eyepiece, diopter adjustment ±5, tubeΦ30mm

3.Objective 45mm DIN achromatic objective：4X,10X,40X(S),100X(S,Oil)

4.Viewing Head: Articulated free triinocular head, 30°inclined, interpupillary distance 50-75mm, with 8" color LCD display

5.Nosepiece Backward quintuple or quadruple objective nosepiece

6.Stage  220X148mm X-axis low hand position double mechanical stage(steel wire transmission)，76X50mm,presion 0.1mm，damped double slide clamp

7.Condenser Abbe condenser set

8.Focusing System Coaxial coarse and fine focus knobs, precision 0.002mm

9.Illumination 3W LED lamp with Kohler illumination system

10.LCD screen
