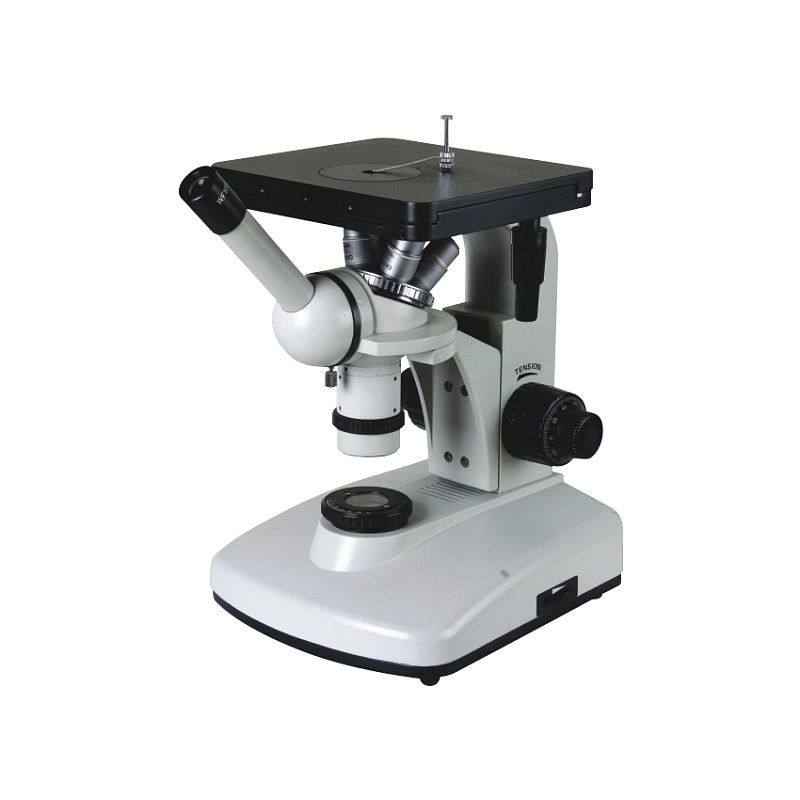

Metallurgical Microscope

Item No.: BM-2006M
MOQ: 10 PCS
Delivery Time: 20Days

Thanks
Add OK

45mm DIN Achromatic Objective:10X,100X(S, Oil)

Metallurgical Plan-scope Achromatic Objective:40X(S)

Wide Field Plane-Scope Eyepiece: WF10X,WF12.5X

Wide Field Plane-Scope Eyepiece with 0.1mm Cross Micrometer: WF10X

Micro-ruler:0.01mm/scale

Total Magnification:100X-1250X

Monocular Head,45º Inclined

Double Layers Mechanical Stage(200X180mm)with Two Plates(Ø10 and Ø20mm);

Moving Range X-Y:70X50mm

Coaxial Coarse And Fine Focusing Adjustable Mechanism by Rack and Pinion with Tension Adjustment and Stage Height Limited Knob;

Focusing RangeL:25mm;Precision:0.002mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohler Illumination System with Blue, Green, Yellow, and Ground Glass Filters
