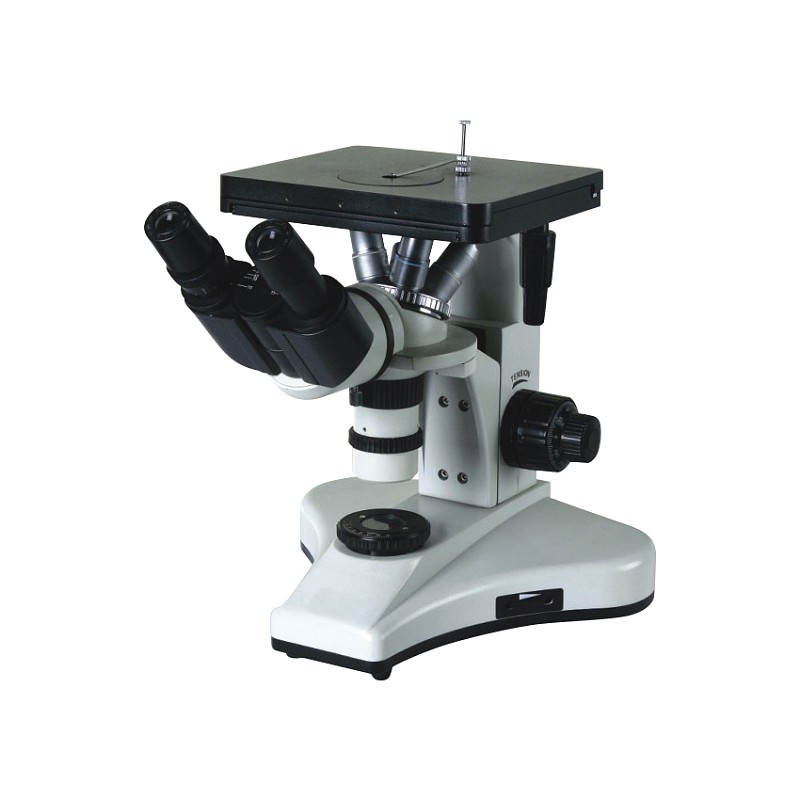

Metallurgical Microscope

45mm DIN Achromatic Objective 10X 100X(S, Oil)

Metallurgical Plan-scope Achromatic Objective 40X£¨S

Wide Field Plane-Scope Eyepiece WF10X WF12.5X

Wide Field Plane-Scope Eyepiece with 0.1mm Cross Micrometer WF10X

Micro-ruler 0.01mm/scale

Total Magnification 100X-1250X

Articulated Free Binocular Head 45º Inclined

Double Layers Mechanical Stage 200X180mm with Two Plates Ø10 and Ø20mm

Moving Range X-Y 70X50mm

Coaxial Coarse And Fine Focusing Adjustable Mechanism by Rack and Pinion with Tension Adjustment and Stage Height Limited Knob

Focusing Range 25mm Precision 0.002mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohler Illumination System with Blue Green Yellow and Ground Glass Filters
