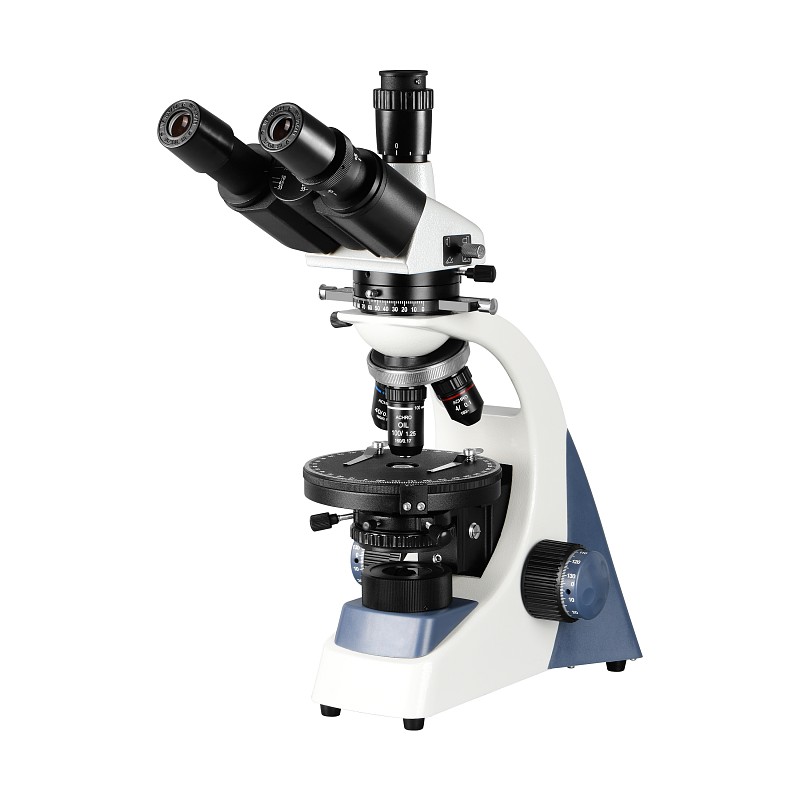

Polarizing Microscope

Item No.: BM-2005TP
MOQ: 10 PCS
Delivery Time: 20 Days

Thanks
Add OK

1.45mm DIN Achromatic Objective:4X,10X,40X(S),100X(S, Oil)

2.Wide Field Plane-Scope Eyepiece:WF10X,WF16X(Optional);

Total Magnification:40X-1600X

3.Articulated Free Trinocular Head, Interpupillary Distance:55-75mm;30º Inclined,360º Rotatable

Revolving Round Stage:Ø160mm;

4.360ºRotatable and Graduated 1ºIncrements,Minimum Resolution 6’;

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter; ABBE Condenser:N.A.1.25;

5.Coaxial Coarse And Fine Focusing Adjustable; Mechanism:14mm,Precision:0.01mm;

6.Rotatable Analyzer with Graduation 0º-90º,Sliding out of Optical Path;

7.Optical Compensator:λSlip(first-class red),1/4λSlip;

8. Polarize: On the light collector, 360º Rotatable;

9. Built-in Adjustable Brightness LED Lamp 1W
