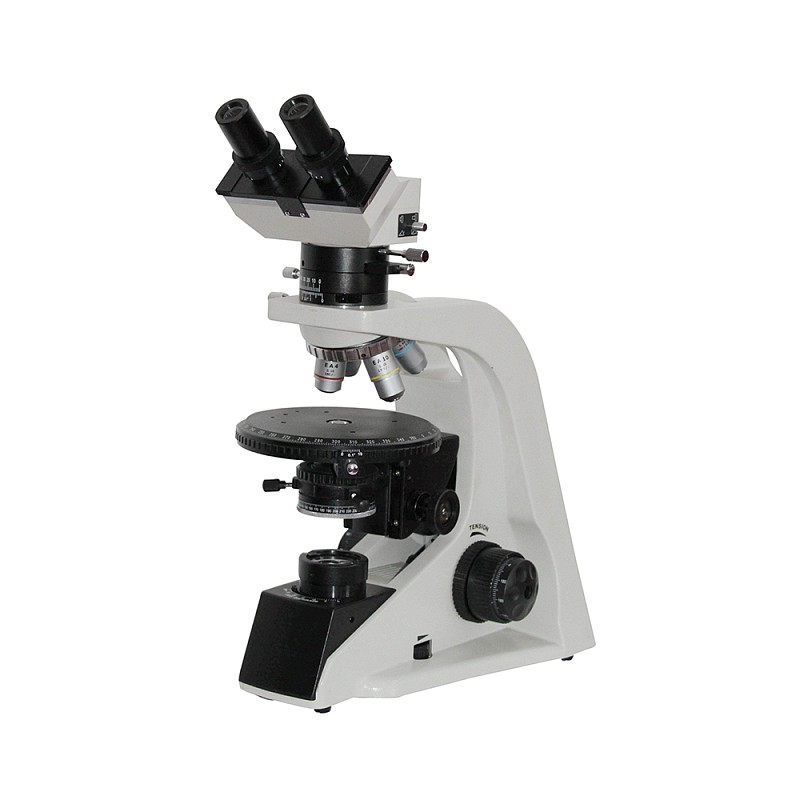

Polarizing Microscope

Product Details

1. One Piece Wide Field Plan-scope Eyepiece WF10X/18mm with Scale of Crosshair 0.1mm & one  Piece  Wide Field Plan-scope Eyepiece WF10X/18mm

2.45mm Strain Free Achromatic Objective: 4X,10X,40X, 63X

Head

3.Sliding binocular Head, Interpupillary Distance:55-75mm;

45°Inclined, 360°Rotatable;

4.Rotatable Analyzer with Graduation 0°-90°, Sliding out of Optical Path;Bertrand Lens, Sliding out of Optical Path;

5.Stage Revolving Round Stage: Φ160mm; 360° Rotatable and Graduated 1° Increments, Minimum Resolution 6’ When using Venire Scale, Certer Adjustable;

6.Condenser ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter

7.Focusing Adjustment ：Coaxial Coarse and Fine Focusing Adjustable Mechanism: 35m

Fine Focusing Adjustable precision: 0.002mm

8.Others Optical Compensator:λSlip(First Class  Red), 1/4 λSlip; Quartz Wedge; Polarize: On The Light Collector; 360° Rotatable

9.Illumination Built-in Adjustable Brightness 1W LED Lamp

10.Optional  Infinity System Strain free Plane-scope Achromatic Objective 5X,10X,40X
