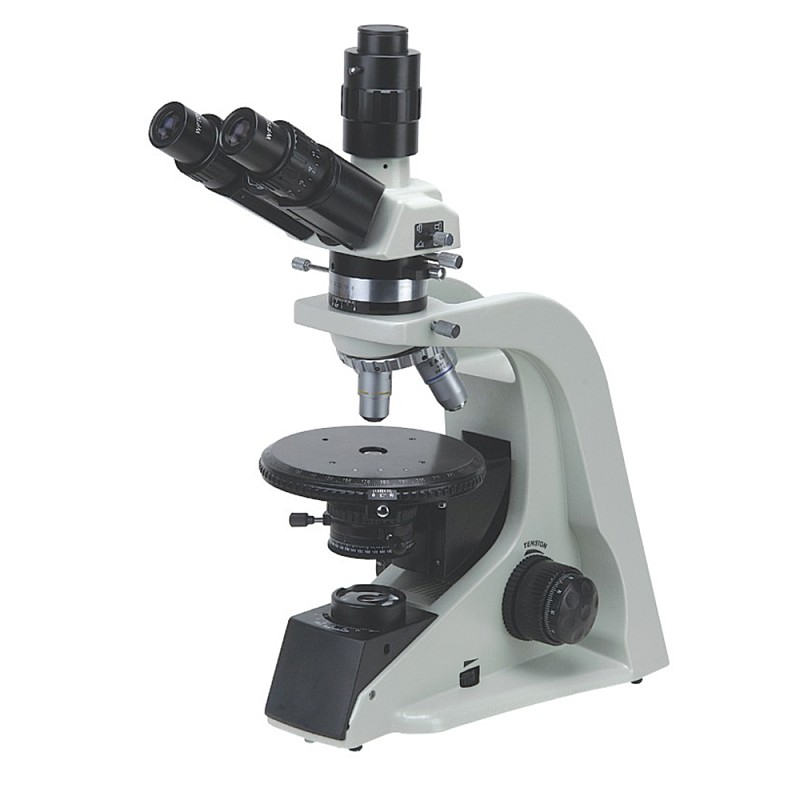

Polarizing Microscope

45mm Strain Free Achromatic Objective:4X,10X,40X,63X

Wide Field Plane-Scope Eyepiece WF10X/18 with the scale of Crosshair and 0.1mm and Wide Field Plane-Scope Eyepiece WF10X/18;

Total Magnification:40X-630;

Sliding Trinocular Head(or binocular head),Interpupillary Distance:55-75mm;

45º Inclined,360º Rotatable;

The Adjustable Height range of the vertical Tube:30mm;

Revolving Round Stage:Ø160mm.360ºRotatable and Graduated 1ºIncrements, Minimum Resolution 6’When Using Venire Scale Center Adjustable;

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter; Coaxial Coarse And Fine Focusing Adjustable;

Abbe Condenser: N.A.1.25;

Coaxial Coarse And Fine Focusing Adjustable Mechanism:35mm, Precision:0.002mm;

Rotatable Analyzer with Graduation 0º-90º, Sliding out of Optical Path;

Bertrand Lens, Sliding out of Optical Path;

Optical Compensator:λSlip(first-class red),1/4λSlip, Quartz Wedge Polarize: Under the Stage,0ºAdjustable 360º Rotatable;

Built-in Adjustable Brightness Halogen Lamp 6V/20W(or 3.5V/1W LED Lamp) and Kohlar Illumination System
