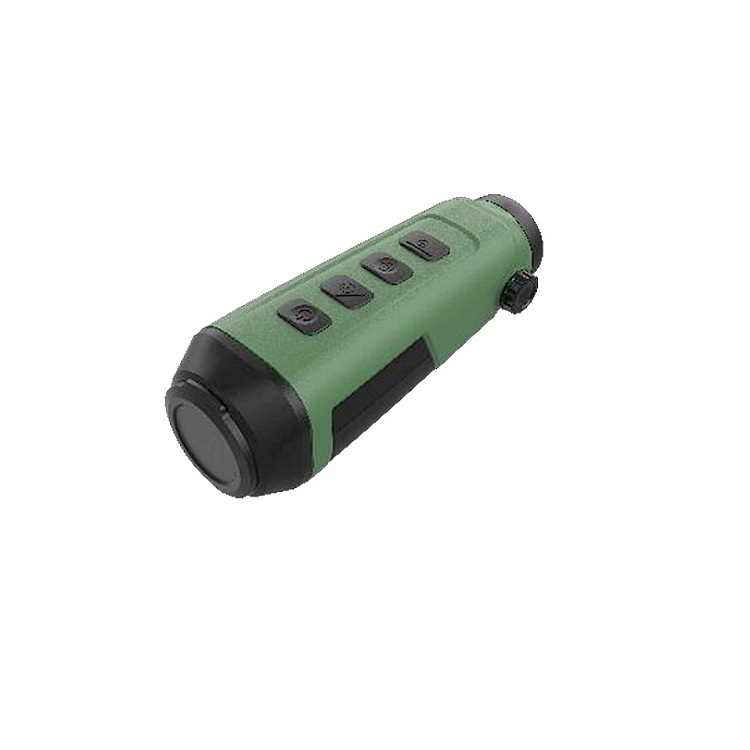

1.47-11.76 X 15 Thermal Monocular

BM-TS013C

Model

1.47-11.76X15

Thermal Module

1. Image Sensor

VOx Uncooled Focal Plane Arrays

2. Max.Resolution

384*288mm

3. Pixel Interval

12μm

4. Response Waveband

8μm to 14μm

5. NETD

≤ 35mk@25℃,@F/1.

6. Lens (Focal Length)

15 mm

7. Field of View

17.5°*13.1°(H*V)

8. Aperture

F1.0

9. Magnification

1.42 to 11.6

10. Digital Zoom

1X, 2X, 4X, 8X

Image Display

11. Frame Frequency

50 Hz

12. Monitor

0.4inch, LCOS,1280*960

13. Palettes

Black Hot, White Hot, Red Hot, Fusion

14. FFC(Flat Field Correction) Mode

Auto, Manual

Smart Function

15. Wi-Fi Hot Spot

Yes

16. Detection Range

708m

17. Standby Mode

Yes

System

18. Built-in Memory

8 GB

19. Record Video

Yes

20. Capture Snapshot

Yes

21. Built-in Memory Capacity

220,000 pictures

22.WIFI

Yes

Power Supply

23.Battery Type

Lithium Battery

24. Battery Operating Time

7.5 hours continuous running with Wi-Fi hot

spot function off (@25°C)

6 hours continuous running with Wi-Fi hot

spot function on (@25°C)

25. Battery Capacity Display

Yes

General

26.Eye Point Distance

15mm

27. Work Temperature/Humidity

-20℃ to 55℃ (-4°F to 131°F)

28. Power

5 VDC/2 A, 1.5 W, Type-C Interface

29. Protection Level

IP67

Size/Weight

30. Product Size

159x58x57mm

31. Product Weight

330g
