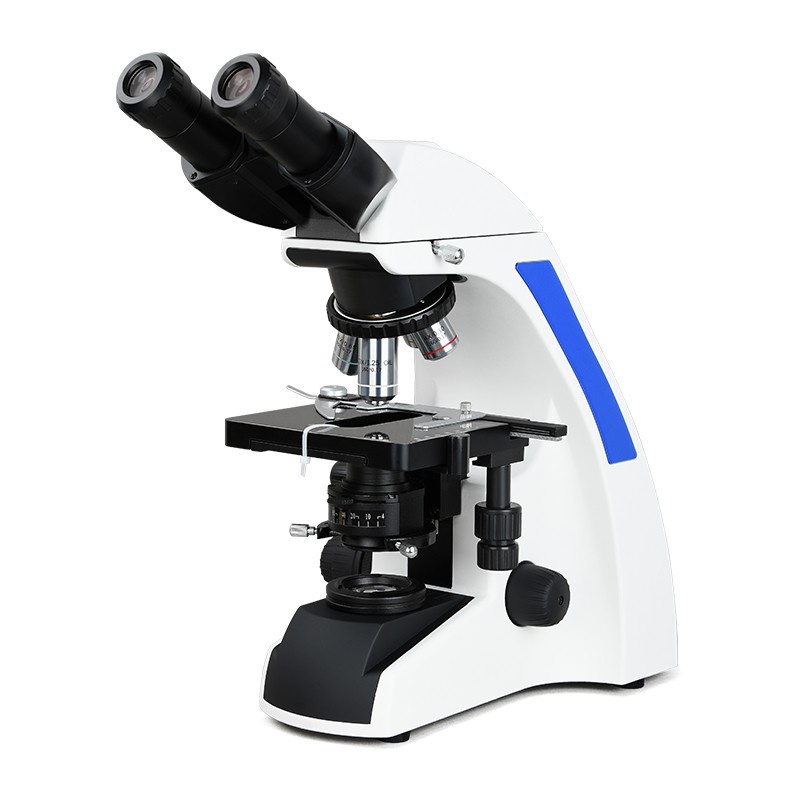

Biological Microscope

Item No.: B1.115B
MOQ: 10 PCS
Delivery Time: 20 Days
Old No.: BM-2000B

Thanks
Add OK

1.Viewing Head:Seidentopf Binocular Viewing Head, Inclined at 30º Interpupillary 48mm-75mm

2.Eyepiece:WF10X/F.N.22mm Wide Field Eyepiece WF10X/F.N.22mm

3.Objective:Finite 195 Series Achromatic Objectives 4X 10X 40Xs 100Xs(oil)

4.Nosepiece:Backward Quadruple Nosepiece

5.Condenser:Abbe Condenser NA1.25 with IrisDiaphragm

6.Focusing System:Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm,

Coarse Stroke37.7mm/Rotation, Fine Stroke 0.1mm/Rotation, Moving range 24mm

7.Stage:Double Layer Mechanical Stage 216x150mm , Graphite Surface, Moving Range75mmx55mm

8.Illumination:External Illumination, 3W/LED
